High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power

  • High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
  • High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
  • High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
  • High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
  • High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
Luogo di origine Cina
Marca Huayu
Certificazione CE,TUV,ISO9001，SGS
Numero di modello Barriera stradale HYBM
Quantità di ordine minimo 1 set
Prezzo negotiable
Imballaggi particolari La macchina sarà smontata in molte parti per il trasporto dei container.
Tempi di consegna 4 MESI
Termini di pagamento L/c, t/t
Capacità di alimentazione 40 set/anno

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Capacità barriera della strada Strati 2 strati
Voltaggio Come requisito Colore Come requisito
Misurare 7 per 5,4 per 5.2 Potenza totale 180 kW
Evidenziare

2 layers blow moulding machine

,

road barrier blow molding machine 180kw

,

high speed blow moulding machine for road barriers
Lasciate un messaggio
Descrizione di prodotto

HYBM-Road barrier

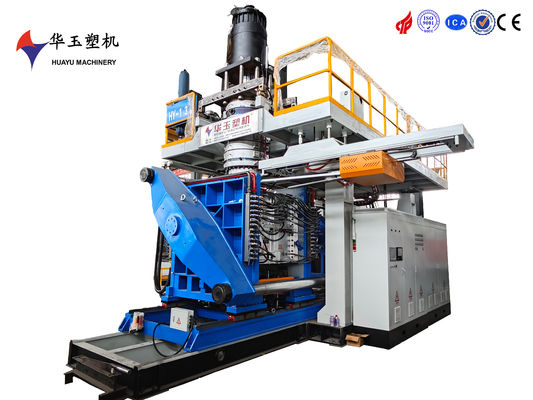

High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power 0

1. machine specification



road barrier

 2layers
Capacity rang /
Machine dimension 7*5.4*5.2
Average 100KW
Total power 180KW
Accumulator capacity 18KG
E*truder motor 37KW*2
Screw diameter 90MM*2
Screw L/D ratio 30:1
Plasticizing capacity 200KG/H
Platen size 1000*1200MM
Platen distance 850-2000MM
Clamping force 800KN
Servo motor 28KW



2.machine details





Huayu patented three-cylinder rapid opening and closing mold locking system



High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power 1



Huayu patented integrated hydraulic station



High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power 2





The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation



High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power 3



High speed screw



High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power 4



3. company advantage



Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!



In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.



Provide customers with technical guidance and continuous optimization of products for life.
