Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design

  • Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design
  • Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design
  • Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design
  • Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design
Luogo di origine Cina
Marca HUAYU
Certificazione ISO9001 CE
Numero di modello HYBM-10000L 1 strato
Quantità di ordine minimo 1 set
Prezzo 140000 USD
Imballaggi particolari essere smontato in molte parti per il trasporto in container
Tempi di consegna 4 mesi
Termini di pagamento T/T, L/C
Capacità di alimentazione 1 set 120 giorni

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Gamma di capacità 2000-10000 L, 1 strato Voltaggio in corso
Potenza totale 690 kW Potenza media 390KW
Dimensione della macchina (L*W*H) 15*9*11 Produttività 2-12 pezzi/ora
Diametro della vite 150/150/mm Capacità dell'accumulatore 300 kg
Diametro della matrice Secondo i prodotti Dimensione massima dello stampo 2600*3000mm(L*A)
Pressione massima dell'aria 0,8 MPa Consumo d'aria 2m3/min
Evidenziare

2000-10000L Capacity Water Tank Blow Molding Machine

,

Precise Molding Control IBC Tank Blow Molding Machine

,

Energy Efficient Blow Molding Machine
Lasciate un messaggio
Descrizione di prodotto

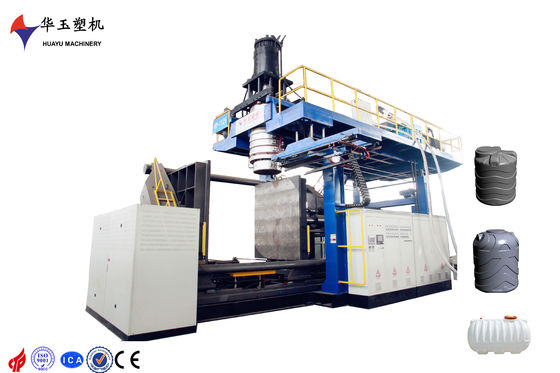

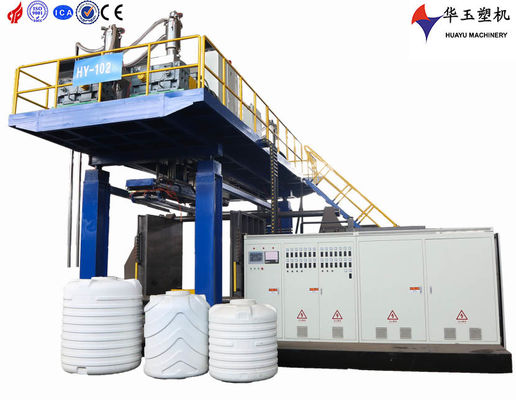

Pro-Grade Water Tank Blow Molding Machine
A specialized industrial machine engineered for producing plastic water buckets and food-grade water containers using advanced blow molding technology. This compact, user-friendly equipment delivers efficient and reliable production performance with precise molding control systems that ensure consistent product quality. The machine produces containers with smooth surface finishes and robust structural integrity that meet strict hygiene and safety standards for food-contact applications.
With flexible adaptability to various bucket designs and food-safe plastic materials, it serves diverse production requirements in household, beverage, and packaging sectors. The optimized operational workflow minimizes disruptions, while ergonomic and energy-efficient features enhance usability and align with sustainable manufacturing principles, making it an indispensable tool for businesses focused on high-quality water container production.
Hydraulic System Specifications
Main Oil Tank Capacity 1500L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump 160*2
Main Oil Pump Motor 57kW*2
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 33
Servo Oil Pump Motor 15kW
Electronic Control System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design 0
