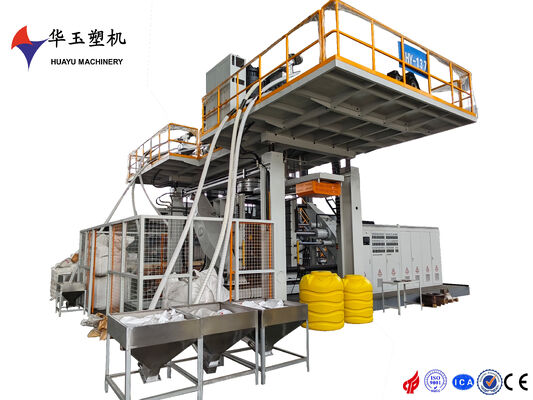

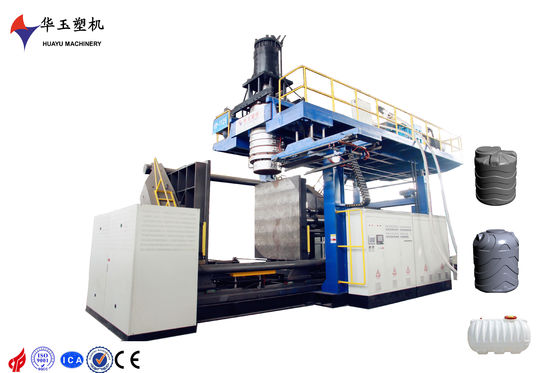

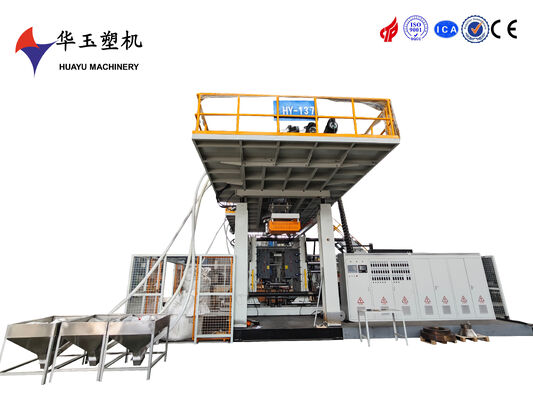

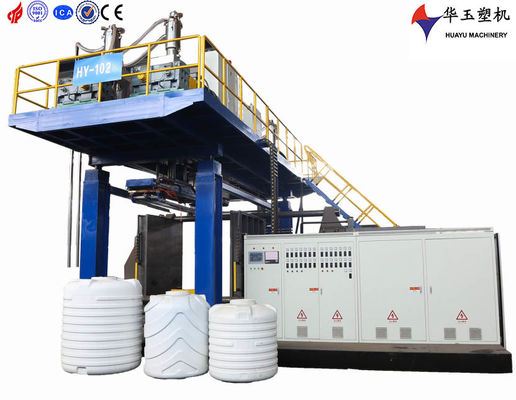

2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production

  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
Luogo di origine Cina
Marca HUAYU
Certificazione ISO9001 CE
Numero di modello HYBM-8.2200L -6 strati
Quantità di ordine minimo 1 set
Prezzo 280000 USD
Imballaggi particolari essere smontato in molte parti per il trasporto in container
Tempi di consegna 4 mesi
Termini di pagamento L/C, T/T
Capacità di alimentazione 1 set 120 giorni

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Voltaggio in corso Potenza totale 550KW
Potenza media 320KW Dimensione della macchina (L*W*H) 8,5*9,5*7
Produttività 10-24 pezzi/ora Diametro della vite 90 mm
Rapporto L/D della vite 28 Capacità dell'accumulatore 60 kg
Dimensione massima dello stampo 1600*2000mm (L*A) Pressione massima dell'aria 0,8 MPa
Consumo d'aria 2.3m3/min
Evidenziare

6-layer structure Water Bucket Blow Molding System

,

2200L capacity Water Tank Blow Moulding Machine

,

High-speed continuous production Blow Molding Machine
Lasciate un messaggio
Descrizione di prodotto
Efficiency Redefined: 6-Layer 2200L Water Bucket Blow Molding System
Key Advantages
  • 6-layer structure for superior durability and impact resistance
  • Strong barrier performance against moisture and contaminants
  • High-speed continuous production for large-scale orders
  • Layered material allocation reduces production costs
  • Flexible customization for 2200L bucket specifications
Hydraulic System Specifications
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 55kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic Control System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production 0
